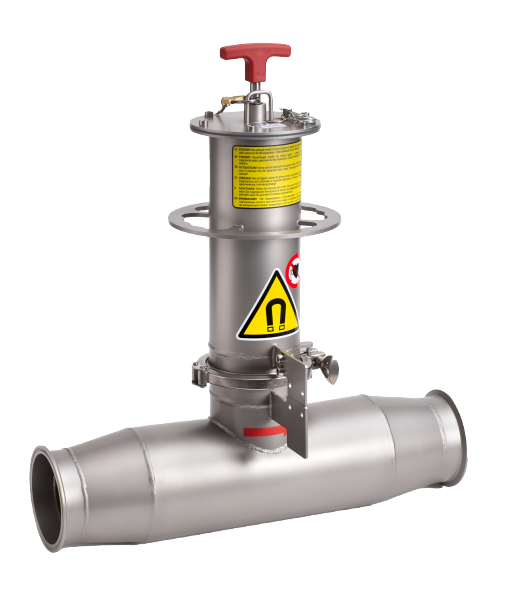

Flow-type magnetic separator MF – Special

MF 100/1-CL10-K-80-S-P-MODEL 1 – 51992
This separator is designed for semi-liquid or dense liquid mixtures that might block a standard, flow-type separator, characterized by thinner magnetic pipes. The device is finding its application area in the food and/or meat industries. In the separator body, there is just one magnetic pipe with the diameter of 60 mm, around which all separated material is flowing – i.e. coarsely milled meat and entrails. The separator does not include a flow labyrinth, so a fluent material flow is warrantied. The separator may be situated within a pressure pipeline characterized by the maximum pressure of 10 bar. On its upper side, the magnetic component is equipped with a padlock preventing unauthorized pulling the magnetic pipe out when the material is flowing within the pipeline.

Separator technical parameters

  • 100 – entrance and exit inner diameter is 100 mm
  • 1 / single-coated
  • CL – the method of connecting to the pipeline uses the CLAMP connecting system
  • 10 – to be installed within a pipeline with the maximum pressure of 10 bar
  • K – parts being in a contact with the separated material are manufactured using highly resistant 1.4404 stainless steel.
  • 80 – temperature resistance is up to 80 °C
  • S – silicone sealing
  • P – the separator surface treatment is by sanding, the only polished parts are the covering pipes
  • Magnetic induction on the coat: 10,500 G
  • Coat tear-off force: 114 N
